Filter Cartridges

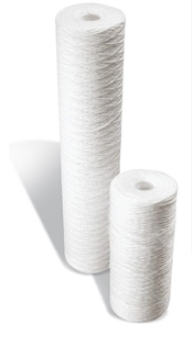

WOUND CARTRIDGES (FA-LFH SERIES , FA AB SERIES)

FLOW L/h

MODEL MICRON 5" 10" 20" 30" 40"
FA 1 500 900 1300 1800
FA 5 650 1300 2300 3500 4600
FA 10 2000 3600
FA 20 1250 2500 4500 6700 9000
FA AB 5 1500 2700 4000
FA AB 20 3000 5400
  • Complies with food regulations.

Technicial Specifications

FA AB FA
Raw material %100 PP %100 PP
Lenght 10"-20"-30"-40" 10"-20"-30"
Inner diameter (b) 28 mm 28mm - 38mm
Outer diameter (c) 61 mm 114 mm
Micron rating 1,5,10,20 5,20
Efficiency %80 %80
Max working pressure 8 bar 8 bar
Max working temperature 50°C 50°C

MELT BLOWN SEDIMENT FILTERS

EQUA SERIES MELT BLOWN CARTRIDGES

EQUA SERİSİ MELT BLOWN FİLTRE KARTUŞLAR

KOD MODEL LENGTH MICRON
Y0618-Y0619-Y0073 EQUA SPUN 10" 1-5-20
Y0100-Y0620 EQUA SPUN 20" 1-5
Y0207-Y062 EQUA SPUN 30" 1-5
Y0622-Y0204 EQUA SPUN 40" 1-5
  • Economic spun filter.

EQUA BIG SERIES MELT BLOWN FILTER CARTRIDGES

KOD MODEL LENGTH MICRON
Y0392 EQUA AB SPUN 10" 5
Y0391 EQUA AB SPUN 20" 5
  • Economic spun filter for Big blue housings.

MELT BLOWN CARTRIDGES - FR-E SERIES

FLOW L/h

MODEL MICRON 10" 20" 30" 40"
FR-E 5 1600 2800 4300 5800
FR-E 20 2200 4000 6000 7900
FR-E AB 5 1600 2800
FR-E AB 5 2500 4300
  • FR-E series are produced with the same technology as FR-N series.
  • It is recommended to use in places where prices and quality performance is important.
  • Although its economical, its efficiency is quite high compared to its competitors.

Technicial Specifications

FR-E FR-E AB
Raw material %100 PP %100 PP
Lenght 10"-20"-30"-40" 10"-20"
Inner diameter (b) 28 mm 28 mm
Outer diameter (c) 61 mm 100 mm
Micron rating 1,5,10,20 5,20
Efficiency %80 %80
Max working pressure 8 bar 8 bar
Max working temperature 50°C 50°C

MELT BLOWN CARTRIGES - FR-N SERIES

FLOW L/h

MODEL MICRON 5" 10" 20" 30" 40"
FR-N 1 500 100 1800 2700 3500
FR-N 5 7500 1600 2800 4300 5400
FR-N 10 2000 3600
FR-N 20 2500 4300
FR-N AB 5-10 2000 3300 4500
FR-N AB 20-50 3000 5200
  • Micron values are consistent.
  • There is a plastic cage inside.
  • It complies with the food regulations.

Technicial Specifications

FR-N FR-N AB
Raw material %100 PP %100 PP
Lenght 10"-20"-30"-40" 10"-20"
Inner diameter (b) 28 mm 28 mm
Outer diameter (c) 61 mm 61 mm
Micron rating 1,5,10,20 5,20,20-50
Efficiency %95 %95
Max working pressure 8 bar 8 bar
Max working temperature 80°C 80°C

MELT BLOWN CARTRIDGES - FR-A UF STERILE FILTRATION

FR-A UF STERILE FILTRATION

KOD MODEL LENGTH MICRON
A9030220 FR-A UF 10" 0,2
  • Outside FR-A (absolute filter), inside ultrafiltration.

Technicial Specifications

Raw material %100 PP
Lenght 10"
Inner diameter (b) 26 mm
Outer diameter (c) 63 mm
Micron rating 0,2
Efficiency %99,98
Max working pressure 8 bar
Max working temperature 5-35°C
Debi 180 lt/h

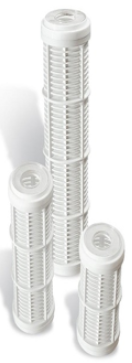

Washable Plastic Cartridges (RLA Series , RLA Kid , RLA AB)

FLOW L/h

MODEL MICRON 5" 10" 20" 30"
RLA 80 1750 3500 7000
RLA KID 80 1900
RLA AB 80 6000 12000 18000
  • It is used in standard housings.
  • Complies for food regulations.
  • For EU series Aqua big (BIG BLUE) containers.

.

Technicial Specifications

RLA RLA KID RLA AB
Raw material %100 PP %100 PP %100 PP
Lenght 5"-10"-20" 10"-20"-30" 10"-20"-30"
Inner diameter (b) 27-38 mm 28 mm - 38 mm 27 mm / 36 mm
Outer diameter (c) 65 mm 114 mm 115 mm
Micron rating 80 80 80
Efficiency %80 %80 %80
Max working pressure 8 bar 8 bar 8 bar
Max working temperature 50°C 50°C 50°C

STAINLESS STEEL WASHABLE CARTRIDGES (AC , AC-HT)

FLOW L/h

MODEL MICRON 5" 10" 20"
AC 80 1200 2500 4800
AC-HT 80 3200 6400
SS AISI 304

Technicial Specifications

AC AC-HT
Raw material SS AISI 304 SS AISI 304
Lenght 5"-10"-20" 10"-20"-30"
Inner diameter (b) 27 mm / 27 mm 26 mm - 37 mm
Outer diameter (c) 68 mm 68 mm
Micron rating 80 80
Efficiency %75 %75
Max working pressure 6 bar 6 bar
Max working temperature 80°C 80°C

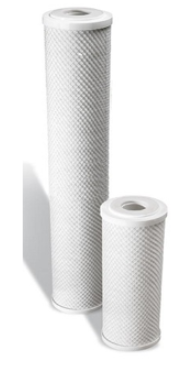

ACTIVATED CARBON CARTRIGES (CTO-E , CA POST , GAC SERIES)

Technicial Specifications

Lenght 10"-20"
Inner diameter (b) 26 mm
Outer diameter (c) 72 mm
Micron rating 10,20,40
Efficiency %95
Max working pressure 8 bar
Max working temperature 50°C

AQUA ACTIVATED CARTRIDGES

KOD MODEL MICRON LENGTH
A4220050
A4220070		 CTO-E (Block carbon) 10 10" - 20"
A4120030 CA-POST (Granular carbon in transparent cartridge) 20 10"
A4120560 GAC-40 (Filtered granular carbon cartridge) 40 10""

EQUA ACTIVATED CARBON CARTRIDGES

KOD MODEL MICRON LENGTH
A4220073
A4120030		 CT Block (Coco) 10 10" - 20"
A4220074
A4120560		 CT Block (Kömür) 10 10" - 20"
A4120561 GAC-40 (Filtered granular carbon cartridge) 40
  • Economic carbon filter cartridges.
EQUA CT AB SERIES
KOD MODEL MICRON LENGTH
A4220110
A4220120		 CT AB 10 10" - 20"
  • Economic block carbon for AQUA BIG (BIG BLUE) housings.

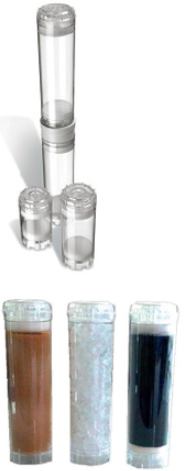

RESIN CARTRIDGES , SILIFOZ CARTRIDGES , EMPTY TRANSPARENT

EMPTY CARTRIDGES CV SERIES

CODE MODEL LENGTH
A4110010
A4110030		 CV (Boş) 5" - 10"

CV RESIN CARTRIDGES

CODE MODEL LENGTH
RC0134 CV Reçineli (Şeffaf kartuş içerisinde reçineli kartuş) 10"
CP/PRE POST SILIFOZ CARTRIDGES
CODE MODEL LENGTH
A4130030 CP/PRE-POST (Şeffaf kartuş içerisinde silifozlu/polifosfatlı kartuş) 10"

BIG ONE CARTRIDGES (MELT BLOWN FON BO , WASHABLE RLA BO , WOUND FA BO)

FILTER CARTRIDGES FLOW L/h

MODEL MICRON 23" 40"
FON BIG ONE 1-10 8000 16000
FON BIG ONE 5-20 15000 30000
FON BIG ONE 20-50 20000 40000
FA BIG ONE 5 16000 32000
FA BIG ONE 80 30000 45000
  • The flow rates are valid when the filters are clean and at 20°C.

FON BIG ONE SERIES

MODEL MICRON HEIGHT
A4310060
A4310030
A4310040		 1-10
5-20
20-50		 23"
A4310050
A4310030
A4310040		 1-10
5-20
20-50		 40"

WOUND CARTRIDGES ​FA BIG ONE SERIES

MODEL MICRON HEIGHT
A4018020
A4018060		 5 23"
40"

RLA BIG ONE SERIES

MODEL MICRON HEIGHT
A4038010
A4038030		 80 23"
40"

Technicial Specifications

FON BIG ONE FA BIG ONE RLA BIG ONE
Raw material %100 PP %100 PP PA
Core %100 PP %100 PP PP
Outer cage - - PP
End cage FON FON FON
O-ring B,S,V B,V B,V
Lenght 23"-40" 23"-40" 23"-40"
Inner diameter (b) 76 mm 76 mm 76 mm
Outer diameter (c) 147,5 mm 147,5 mm 147,5 mm
Micron rating 1-10, 5-20, 20-50 1, 5, 20 80, 250
Efficiency %80 %80 %80
Max working pressure 6 bar 6 bar 6 bar
Max working temperature 80°C 60°C 60°C

FILTER CARTRIDGE ACCESSORIES (UNIVERSAL CARTRIDGE ASSEMBLY, CV CARTRIDGE ASSEMBLY, RLA CARTRİDGE ASSEMBLY)

FILTER CARTRIDGE ACCESSORIES

CODE MODEL EXPLANATION
A6010190 FA-AC-CTO-E universal cartridge connector
S4110180 CV-CA POST 20 CV cartridge connector
A6010200 RLA RLA cartridge connector
